ReliaHome Smart Panels can control six poles of up to 60 A and six poles of up to 30 A.

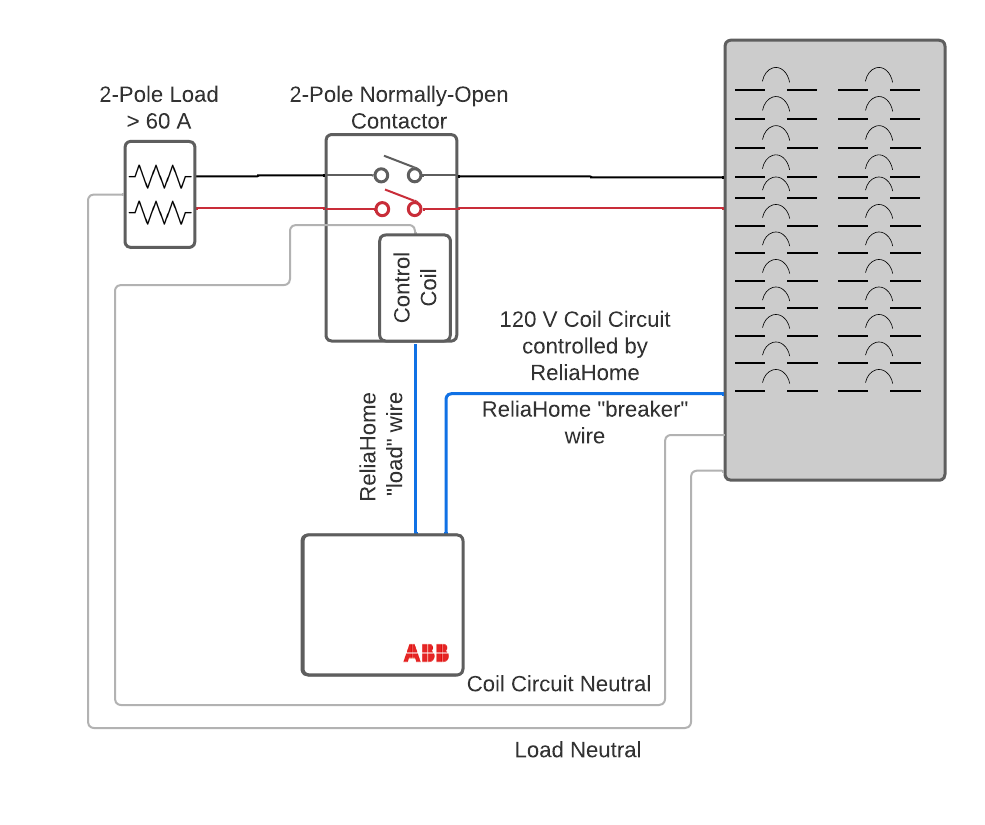

Occasionally, a load greater than 60 amps needs to be controlled by a ReliaHome Smart Panel. This is best accomplished by means of an AC contactor arranged in the following fashion of the diagram below.
An example of a suitable contact is ABB's AF116-30-11-13. Any ABB distributor should be able to procure this, but an example is found here:
https://www.galco.com/af116-30-11-13-abbg.html
